Quickly Printing Files on USB Memory or Android/iOS Terminal
To directly print a file on a USB memory
Print a File from a USB Memory Device
Operations required to use this function (for the administrator)
Enable to print files from a USB memory.
As file printing is enabled by default, an operator can use USB memory on this machine without any setup.
For system settings for USB memory operation, refer to Here.
Operation flow
Any of PDF, Compact PDF, JPEG, TIFF, XPS, Compact XPS, OOXML (.docx/.xlsx/.pptx), and PPML (.ppml/.vdx/.zip) format files can be printed out.
You can also print out encrypted PDF, searchable PDF, and outline PDF files.
A 1200-dpi resolution file is printed in the 600
600-dpi resolution.
Insert a USB memory device into the USB port of the machine.
When this machine is starting up, do not insert or remove the USB memory device to/from the USB port.

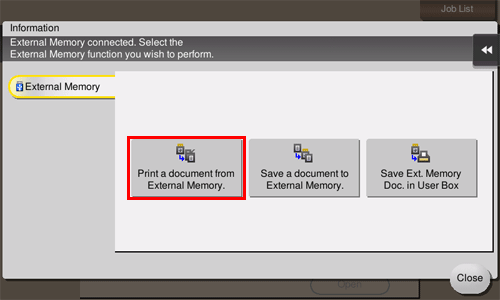

Tap [Print a document from External Memory.].
You can also print files by selecting the User Box mode and by tapping [System] - [External Memory].

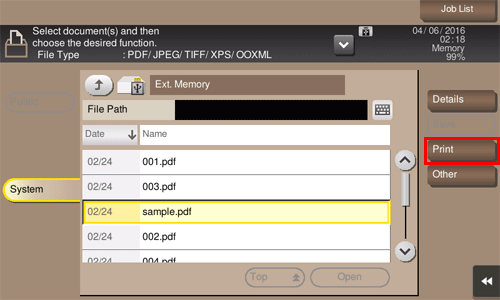

Select a file to print, then tap [Print].
You can directly enter the path to the file folder in the [File Path] field.
Tap [Top] to move upward.
Tap [Open] to open the folder and move downward.
Tap [Details] to display and check the detailed file information.
Set print options if necessary.
You can select a paper size for printing. For details, refer to Here.
For detailed optional settings, refer to Here.
Press the Start key.
Printing starts.
When printing is complete, remove the USB memory device from the port of this machine.
When you print a password protected PDF file, the file is stored in the Password Encrypted PDF User Box. To print files from Password Encrypted PDF User Box, refer to Here.
To directly print an E-mail attachment
Printing a received E-mail attachment (E-mail RX Print)
E-mail RX Print

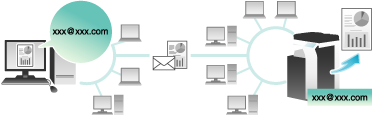

E-mail RX Print is a function that prints a file attached to the E-mail received by the machine.
If you send an E-mail to the E-mail address of the machine, you can print a PDF, Compact PDF, JPEG, TIFF, XPS, Compact XPS, OOXML (.docx/.xlsx/.pptx), or PPML (.ppml/.vdx/.zip) file on the computer using the machine without using the printer driver.
If necessary, you can save an E-mail attachment in a User Box of the machine.
To use this function, the optional Extension Memory and i-Option LK-110 v2 are required.
E-mail and attachment specifications
To use the E-mail RX Print function for printing, E-mails and attachments must satisfy the following conditions.
Item | Specifications |
|---|---|
Number of files | Up to 20 files |
File size | Unlimited |
Supporting file type | PDF/Compact PDF/XPS/Compact XPS/TIFF/JPEG
|
E-mail format | The E-mail format has the following restrictions.
|
Specifying an address | Address (To), CC, BCC |
Files that do not satisfy the above conditions are discarded. Detailed information such as whether a file has been discarded can be viewed in the job history.
When you receive a password-protected PDF file as an E-mail attachment, the file is saved in the Password Encrypted PDF User Box.
If an E-mail has no attachment, the E-mail is discarded.
Operations required to use this function (for the administrator)
Configure the settings to enable this machine to receive an E-mail. Also, enable the E-mail RX Print function.
To save and manage received E-mail attachments in a User Box, specify the desired User Box to automatically save them in it.
How to configure the setting is explained using Web Connection. For details, refer to Here.
If User Authentication/Account Track is enabled, the E-mail is discarded.
To receive E-mails while User Authentication/Account Track is enabled, you must specify [Print without Authentication] (default: [Restrict]) to permit printing without authentication. For details, refer to Here.
Configuring a print setting when sending an E-mail
The E-mail attachment that have been sent is printed on the machine according to the setting values configured by selecting [Utility] - [User Settings] - [Printer Settings]. To change the print setting each time you sent an E-mail, enter a predetermined setting value into the Subject field of an E-mail in your E-mail program, and configure the desired print setting.
Enter the setting value in the "setting value@" format into the Subject field.
Entry example of specifying a single setting value: dup@
Entry example of specifying multiple setting values: dup, box1@
The available setting values are as follows.
Item | Setting value | Description |
|---|---|---|
Color | col | Sets the print color to full color mode. |
mono | Sets the print color to black and white mode. | |
Duplex/Simplex | dup | Sets both sides of paper to be printed on. |
simp | Sets a single side of paper to be printed on. | |
Original Orientation | port | Sets the original orientation to Portrait. |
land | Sets the original orientation to Landscape. | |
Copies | Numeric Value | Specify the number of copies (1 to 9999) to be printed. |
Combine | Column + Numeric value | Specify the number of columns (1 to 5) to be combined in one page. Entry example: Column2 |
Row + Numeric value | Specify the number of rows (1 to 5) to be combined in one page. Entry example: Row3 | |
Staple | st1 | Sets the number of staples to one (Corner). This function is only available in bizhub C3851FS. |
Recalling the copy program | m + Numeric value | Specify the registration number (1 to 30) of the copy program to be applied to printing. Entry example: m1 |
Specifying a User Box | box + Numeric value | Specify the registration number (1 to 999999999) of the User Box to save files in. If the registration number of a User Box that does not exist is specified, a new User Box is created automatically to save files. Entry example: box1 |
A setting value entered after "@" is not considered to be a print setting value. If "@" is omitted, the entire subject text is considered to be a setting value.
The setting value is not case sensitive. Characters other than a setting value are invalid.
To specify multiple setting values, delimit them using a comma ",".
If multiple setting values are specified in the same item, the setting value entered first is applied.
If the copy program is specified, its settings are prioritized, and other individual settings are disabled.
The basic print settings inherit the print settings configured on the machine. For details, refer to Here.
Receiving an E-mail on the machine and print a file
The user manually inquires the mail server regarding the E-mail reception status using the Touch Panel.

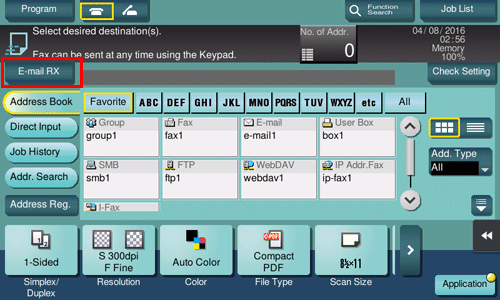

Tap [E-mail RX] to inquire the mail server. If there is an incoming E-mail, receive it and print its attachment.
The machine automatically inquires the mail server regarding the E-mail reception status at a predetermined interval (default: 15 minutes) depending on the E-mail RX setting. If an E-mail has arrived, the machine receives it and prints its attachment.
When you receive a password-protected PDF file as an E-mail attachment, the file is saved in the Password Encrypted PDF User Box. To print files from Password Encrypted PDF User Box, refer to Here.
To print files on an Android/iOS terminal via Wi-Fi Direct
Using Wi-Fi Direct for printing
About Wi-Fi Direct

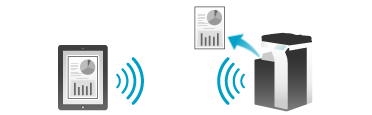

Wi-Fi Direct is a standard that enables direct connection with a wireless terminal without an access point.
You can specify and print a file stored on a terminal using an Android/iOS terminal such as a smartphone or a tablet PC that supports Wi-Fi Direct.
The optional Wireless LAN Interface Kit is required to use this function. The models for North America provide the Wireless LAN Interface Kit as standard.
Machine side: Steps required to use this function (for the administrator)
Configure settings to use Wi-Fi Direct on this machine.
How to configure the setting is explained using Web Connection. For details, refer to Here.
Terminal side: Operations required to use this function
Connect a terminal that supports Wi-Fi Direct to this machine via Wi-Fi Direct.
For details on how to operate a terminal, refer to the relevant manual.
Some terminals may not be able to be connected to this machine via Wi-Fi Direct. For details, refer to the relevant manual of your terminal.
Select "Wi-Fi Direct" on the setting menu of the terminal.
This displays a list of devices that support Wi-Fi Direct.
Select the SSID of this machine from the list.
This machine is registered on the terminal, and the connection setting is completed.
For a terminal that does not support Wi-Fi Direct, a virtual SSID for the Wi-Fi Direct connection of this machine is displayed on the Wi-Fi (setting) screen. When the virtual SSID of this machine is selected on the Wi-Fi (setting) screen of the terminal, the terminal can be connected to this machine via Wi-Fi Direct.
If [Wireless Channel Settings] is set to [Auto] o this machine, it may cause a Wi-Fi Direct connection failure on some Android terminals. In this case, change the [Wireless Channel Settings] setting to the fixed channel, then retry a connection. For details on the setting of this machine, refer to Here.
Using an Android/iOS terminal for printing
You need to install PageScope Mobile on your Android/iOS terminal.
Establish a pairing between the Android/iOS terminal with PageScope Mobile installed and this machine.
Network information of this machine can be displayed as the QR code on the screen of this machine. You can only read the QR code on the Android/iOS terminal to easily establish a pairing between this machine and the Android/iOS terminal. For details, refer to Here.
When you are using an NFC-compatible Android terminal, you can easily establish a pairing between this machine and the Android terminal using NFC. For details, refer to Here.
When you are using an iOS terminal compatible with Bluetooth LE, you can easily establish a pairing between this machine and the iOS terminal using Bluetooth LE. For details, refer to Here.
Specify a file to be printed, then execute printing.
For details on how to make prints, refer to the help of PageScope Mobile.
Printing using a computer
After connecting this machine to the computer via Wi-Fi Direct, install the printer driver on the computer.
