PC (SMB)

To display:
  • [Classic Style]
    • [Scan/Fax]
      • [Direct Input]
        • [PC (SMB)]

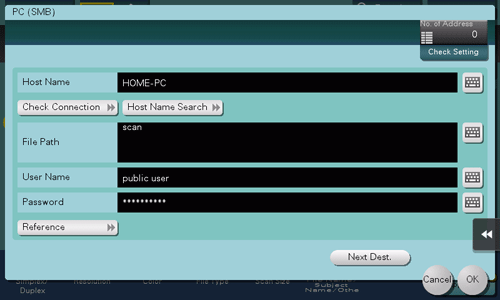

Directly enter destination information for SMB transmission.

Setting

Description

[Host Name]

Enters the destination computer name (host name) or IP address (using up to 253 bytes).

  • Example to enter the computer name (host name): "HOME-PC"

  • Example to enter the IP address (IPv4): "192.168.1.1"

  • Example to enter the IP address (IPv6): "fe80::220:6bff:fe10:2f16"

[Check Connection]

Check whether or not the host name you specified in [Host Name] exists.

[Host Name Search]

Searches for the host name to be applied to [Host Name]. To search for the host name, specify a group name.

  • [Group Name]: Displays the name of the group to which the user belongs by default. To change the group name, select [Change], and enter the desired group name (using up to 15 characters). After entering the group name, specify search conditions, and start Search.

  • [Host Name]: Enter the target host name (using up to 15 characters). After entering the host name, specify search conditions, and start Search.

[File Path]

Enter the shared folder name of the host specified in [Host Name] (using up to 255 bytes).

  • Entry example: "scan"

  • Example to enter the folder name in the folder: "scan\document"

[User Name]

Enter the name of a user with folder access rights (using up to 64 characters).

[Password]

Enter the password (using up to 64 characters, excluding double quotation mark ") to access the folder.

[Reference]

Specify the shared folder of the desired computer by reference to the network.

When the authentication screen appears, enter the name and password of the user who has privileges to access the shared folder. After authentication, [Host Name] and [File Path] are set automatically.

The Reference function may fail under the following conditions.

  • 512 or more workgroups or computers are on the network (subnet) connected to this machine.

  • The machine is connected to the IPv6 environment.

[Enable Auth. Verification]

Select this option to perform authentication for the destination before sending data. To execute authentication, tap [OK] or [Next Dest.].

[Enable Auth. Verification] is displayed when:

  • The single sign-on environment is configured, and this machine is joining the Active Directory domain.

  • The user authentication information (login name and password) of this machine is used as SMB destination authentication information (host name and password).

  • Authentication information is not stored on this machine after you log in through IC card authentication.
