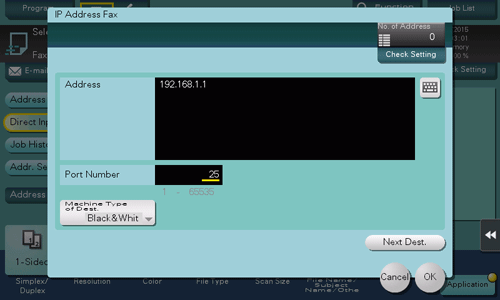

IP Address Fax

To display:
  • [Classic Style]
    • [Scan/Fax]
      • [Direct Input]
        • [IP Address Fax]

Directly enter destination information to transmit an IP address fax.

Setting

Description

[Address]

Enter the destination address.

  • Example to enter the IP address (IPv4): "192.168.1.1"

  • Example to enter the IP address (IPv6): "fe80::220:6bff:fe10:2f16"

  • Example to enter the host name: "host.example.com" (Include the domain name to enter.)

You can also specify a destination by E-mail address. To specify a destination by E-mail address, enter the destination IP address or host name following "ipaddrfax@".

To enter an IP address following the @ symbol, put the IP address in brackets "[ ]".

  • Example to enter the IP address (IPv4): "ipaddrfax@[192.168.1.1]"

To enter an IP address (IPv6), enter "IPv6:" following the left bracket "[ ".

  • Example to enter the IP address (IPv6): "ipaddrfax@[IPv6:fe80::220:6bff:fe10:2f16]"

To enter a host name following the @ symbol, brackets "[ ]" are unnecessary.

  • Example to enter the host name: "ipaddrfax@host.example.com"

[Port Number]

If necessary, change the port number (default: [25]).

[Machine Type of Dest.]

Select whether the destination machine supports the color mode (default: [Black&White]).
