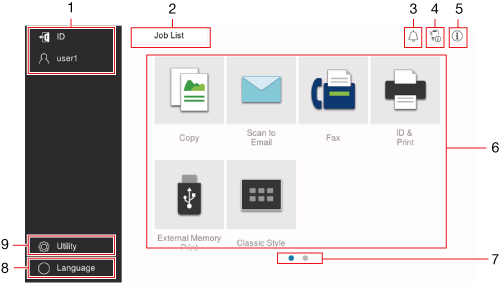

Home Screen

1

User/Account Name

This area displays the name of the current login user or the account name when User Authentication or Account Track is enabled.

Tapping [ID] logs out.

2

[Job List]

Displays active or standby jobs. If necessary, you can check job logs or print a communication report.

This list displays the operation status of the current job on the [Job List] key when it is running. If necessary, you can stop the active job using the Stop key displayed next to the [Job List] key.

For details on [Job List], refer to Here.

3

Notification icon

You can check warnings or notices related to the status of this machine.

4

Device information icon

You can check the current date and time, free space in memory, and toner level.

The corresponding device information is displayed when:

• A nonstandard USB flash drive is connected to this machine;

• Device information logs are spooled;

• Image logs are transferred;

• This machine is in fax redial wait state;

• This machine is receiving data;

• This machine is sending data;

• An E-mail server (POP) connection error occurs; or

• The enhanced security mode is enabled.

5

Information icon

Displays a message for users.

6

Function key

Displays shortcut keys assigned to any function.

You can select the [Main Menu Default (Basic Style)] (Here) to change the shortcut keys displayed on the home screen.

7

Page Indicator

You can check the currently displayed page number.

8

[Language]

Temporarily changes the language to be displayed on the panel.

This option is displayed when [Temporary Change Language Setting] (Here) is set to ON.

9

[Utility]

Configure settings of this machine or check the use status of this machine.

For details on [Utility], refer to Here.
